9602-GSM

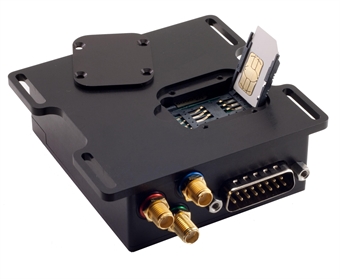

Model 9602-GSM is a pocket-size, low-cost Iridium/GSM tracker. It can be programmed to automatically switch between the Iridium and cellular networks based on a predefined set of conditions. It can send either a standard or a 256-bit AES encrypted GPS report at a pre-programmed interval ranging from continuous to once every seven days. The interval can be changed remotely while the unit is in the field.

The 9602-GSM has the following features:
Standby current of less than 65µA
Internal motion sensor
Two RS232 level I/Os
Seven TTL/CMOS level I/Os for sensor interfaces
GPS sensitivity of -160dBm
Programmed for either commercial or DoD gateway
Supports NAL Research and PECOS formats
Onboard geofencing with ability to load various shapes

Dimensions:    89 mm x 83 mm x 27 mm (3.50" x 3.28" x 1.05")
Weight:    181 g (6.4 oz.)

Input Voltage:    4V to 5.3V or 6.0V to 32V
Avg Current (Report):      200mA @ 5V Input
Avg Current (Sleep):    < 65µA @ 5V Input

I/O Interface:    15-Pin D-Sub
Antenna Interfaces:    SMA Female
Software Interface:    AT Commands through Serial

Operating Temp:    -40°C to +85°C (-40°F to +185°F)
Operating Humidity:    < 75% RH

Iridium Frequency:    1616 to 1626.5 MHz
GSM Frequency:    850 / 900 / 1800 / 1900 MHz
GPS Frequency:    1575.42 MHz (L1 carrier)
